CopyBox 15 CompactFlash Duplicator - cf memory card copier duplicate compactflash cards without computer
Introduction - Features - Specifications

Introduction - cf memory card copier duplicate compactflash cards without computer

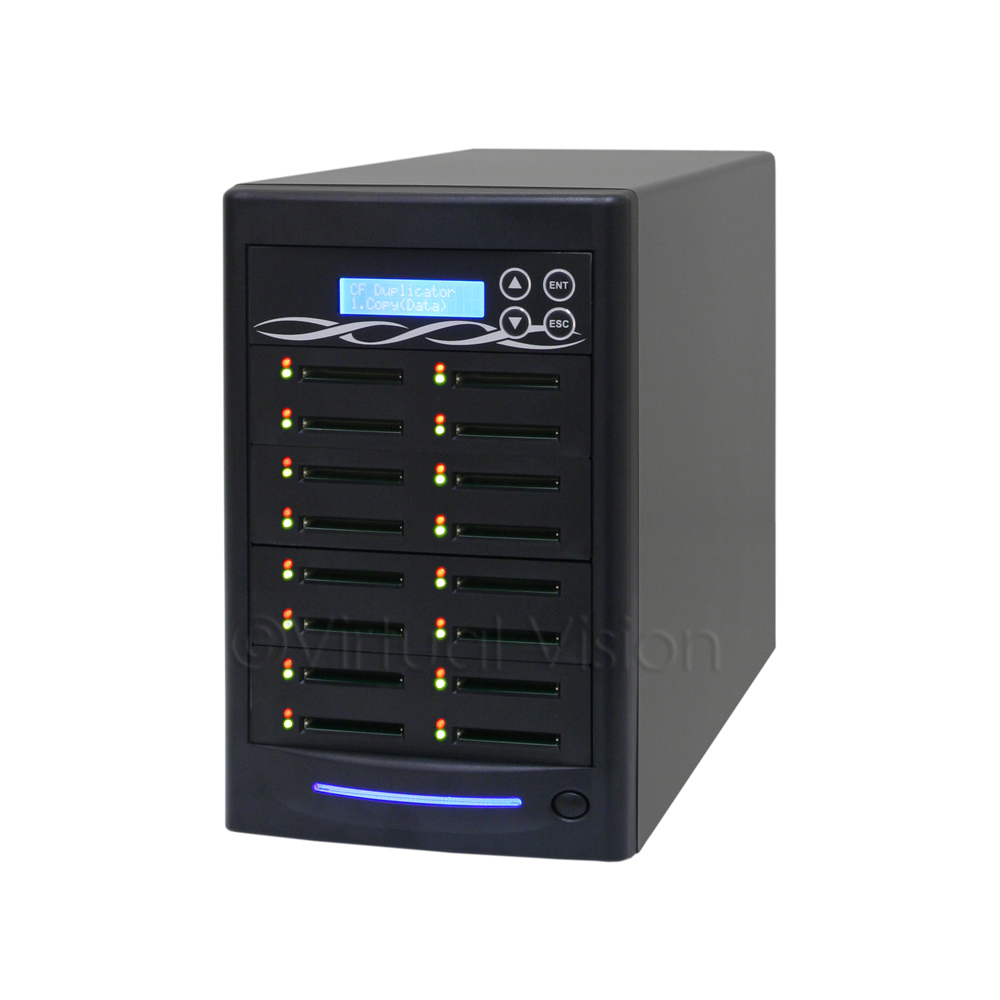

The CopyBox 15 CompactFlash duplicator is suitable for users who regularly need to duplicate CF memory cards. The system operates completely stand-alone, without software or PC connection. The CopyBox 15 CF can simultaneously duplicate 15 CompactFlash cards from one "master" card. Just insert the master CF memory card into the master data port, insert empty CF cards in the target data ports and press the button to start duplicating!

The CopyBox 15 CF offers a maximum duplication speed of 65 MB/s, per individual port. This allows a data throughput of 234 GB per hour, per port. However, most current CF cards offer lower writing speeds which makes the CopyBox production capacity dependant on the specific CompactFlash media used.

Operating the CopyBox 15 CF is quite simple; all functions are selected using the LCD display and control buttons on the front of the unit. This makes the CopyBox suitable for all users. In addition to the regular 'Copy" and "Compare" functions, the CopyBox CF duplicator also offers a number of special features;

- Capacity Check (checks the real flash memory capacity on a CF memory card)
- Quick Format (formats CF cards FAT16/32)
- Quick/Full Erase (erases data from CF memory cards)
- DoD Erase (erases media 3x according to the Department of Defense 5220 standard)
- Measure Speed (measures the real read and write speeds of CF cards)
- Media Check (checks if the entire CF card can be read and written)

Features - cf memory card copier duplicate compactflash cards without computer
- Stand-alone operation, easy to follow menu.
- Suitable for all users, no computer knowledge required.
- One master data port and 15 target data ports.
- Maximum copy speed 65 MB/s, per port.
- Compatible with all CompactFlash memory cards upto 64 GB.
- Format, Erase, Media Check en Capacity Check functions.
- Easy operation through a LCD display and control buttons.
- 100% reliable copies due to the integrated control functions.
- Also available as 7, 23, 31, 39 and 47 port models.

Specifications - cf memory card copier duplicate compactflash cards without computer
Included - cf memory card copier duplicate compactflash cards without computer Included - CopyBox 15 CompactFlash
- Power Cable
- User Manual
Writing Speeds - cf memory card copier duplicate compactflash cards without computer Writing Speeds Maximum 65 MB/s per port (depending on the media used)
Connection - cf memory card copier duplicate compactflash cards without computer Connection Stand-alone
Dimensions - cf memory card copier duplicate compactflash cards without computer Dimensions (LxWxH) 43,5 x 19,0 x 26,9 cm
Weight - cf memory card copier duplicate compactflash cards without computer Weight 6,5 kg
Power Supply - cf memory card copier duplicate compactflash cards without computer Power Supply 100-120 VAC or 220-240 VAC, 50/60Hz, 300 Watt, Switchable
Operating Conditions - cf memory card copier duplicate compactflash cards without computer Operating Conditions - In use : 5°C to 35°C
(RH: 7% to 80% non condensing)
- Not in use : -20°C to 60°C
(RH: 7% tot 90% non condensing)
Data Ports - cf memory card copier duplicate compactflash cards without computer Data Ports 1x Read, 15x Write
Production Capacity - cf memory card copier duplicate compactflash cards without computer Production Capacity Maximum 234 GB per port, per hour
Supported Formats - cf memory card copier duplicate compactflash cards without computer Supported Formats FAT16/32, exFAT, NTFS, Linux (ext2/ext3/ext4)
Supported Media - cf memory card copier duplicate compactflash cards without computer Supported Media CompactFlash memory cards up to 512 GB
Warranty - cf memory card copier duplicate compactflash cards without computer Warranty Standard 1 year carry-in warranty
