Virtual Vision

CopyBox 31 SD microSD Duplicator - dual sd microsd duplication system duplicate secure digital media
Introduction - Features - Specifications

A Virtual Vision Product

CopyBox 31 Secure Digital Duplicator - dual sd microsd duplication system duplicate secure digital media

Order Now - dual sd microsd duplication system duplicate secure digital media

Prices:
Price - dual sd microsd duplication system duplicate secure digital mediaCopyBox 31 SD/microSD
- Prices in Euro's, excl. 21% VAT.
Information:
Delivery Time - dual sd microsd duplication system duplicate secure digital mediaDelivery Time
Warranty - dual sd microsd duplication system duplicate secure digital mediaWarranty 1 year
Payment - dual sd microsd duplication system duplicate secure digital mediaPayment
Shipment - dual sd microsd duplication system duplicate secure digital mediaShipment
Support - dual sd microsd duplication system duplicate secure digital mediaSupport
Price Guarantee - dual sd microsd duplication system duplicate secure digital mediaPrice Guarantee
Downloads:
Product Comparison - dual sd microsd duplication system duplicate secure digital mediaComparison Data Duplicators
User Manual - dual sd microsd duplication system duplicate secure digital mediaUser Manual CopyBox 31 SD/MSD
Download PDF Brochure - dual sd microsd duplication system duplicate secure digital mediaBrochure CopyBox 31 SD/MSD
Multimedia:
High resolution photo - dual sd microsd duplication system duplicate secure digital mediaHigh resolution photo
Also see:
Also See USB - dual sd microsd duplication system duplicate secure digital mediaUSB Stick Duplicators
Also See CF - dual sd microsd duplication system duplicate secure digital mediaCompactFlash Duplicators
Also See HDD - dual sd microsd duplication system duplicate secure digital mediaHard Drive Duplicators
Also See DVD - dual sd microsd duplication system duplicate secure digital mediaDVD Duplicators
Also See BD - dual sd microsd duplication system duplicate secure digital mediaBlu-Ray Duplicators

Introduction - dual sd microsd duplication system duplicate secure digital media

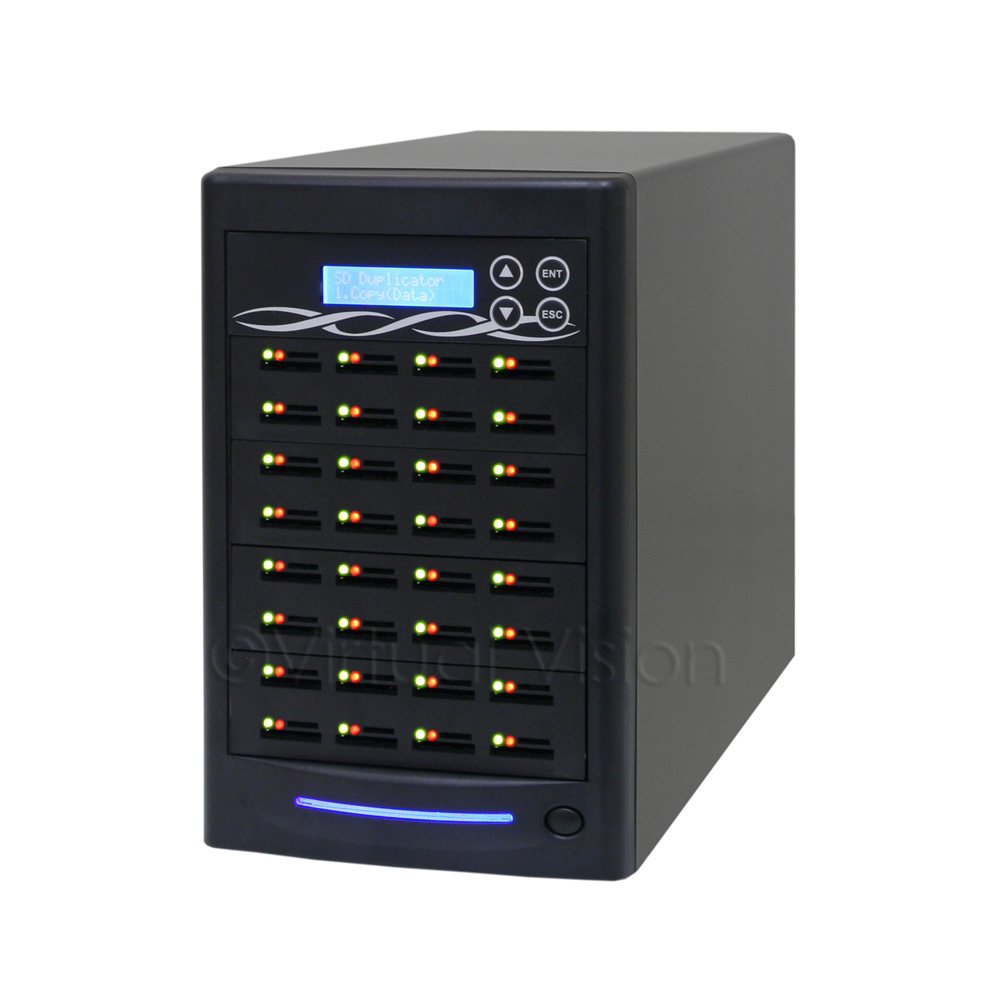

The CopyBox 31 SD/microSD duplicator is suitable for users who regularly need to duplicate Secure Digital flash memory cards. The system operates completely stand-alone, without software or PC connection. The CopyBox 31 offers 31 SD slots as well as 31 microSD slots and can simultaneously duplicate 31 memory cards from one "master" card. Just insert the master SD/microSD memory card into the master data port, insert empty SD/microSD cards in the target data ports and press the button to start duplicating!

The CopyBox 31 SD/microSD offers a maximum duplication speed of 25 MB/s, per individual port. This allows a data throughput of 90 GB per hour, per port. However, most current SD cards offer lower writing speeds which makes the CopyBox production capacity dependant on the specific Secure Digital media used.

Operating the CopyBox 31 SD/microSD is quite simple; all functions are selected using the LCD display and control buttons on the front of the unit. This makes the CopyBox suitable for all users. In addition to the regular Copy and Compare functions, the CopyBox SD/microSD duplicator also offers a number of special features;

- Capacity Check (checks the real flash memory capacity on a SD/microSD memory card)
- Quick Format (formats SD/microSD cards FAT16/32)
- Quick/Full Erase (erases data from SD/microSD memory cards)
- DoD Erase (erases media 3x according to the Department of Defense 5220 standard)
- Measure Speed (measures the real read and write speeds of SD/microSD cards)
- Media Check (checks if the entire SD/microSD card can be read and written)

Features - dual sd microsd duplication system duplicate secure digital media
- Stand-alone operation, easy to follow menu.
- Dual slots, both SD and microSD.
- Suitable for all users, no computer knowledge required.
- One master data port and 31 target data ports, both SD and microSD.
- Maximum copy speed 25 MB/s, per port.
- Compatible with SD and SDHC flash memory cards.
- Format, Erase, Media Check en Capacity Check functions.
- Easy operation through a LCD display and control buttons.
- 100% reliable copies due to the integrated control functions.
- Also available as 7, 15, 23, 39, 47, 63, 79 and 95 port models.

Specifications - dual sd microsd duplication system duplicate secure digital media
Included - dual sd microsd duplication system duplicate secure digital media Included - CopyBox 31 SD/microSD
- Power Cable
- User Manual
Writing Speeds - dual sd microsd duplication system duplicate secure digital media Writing Speeds Maximum 25 MB/s per port (depending on the media used)
Connection - dual sd microsd duplication system duplicate secure digital media Connection Stand-alone
Dimensions - dual sd microsd duplication system duplicate secure digital media Dimensions (LxWxH) 42x18x28 cm
Weight - dual sd microsd duplication system duplicate secure digital media Weight 6,5 kg
Power Supply - dual sd microsd duplication system duplicate secure digital media Power Supply 100-120 VAC or 220-240 VAC, 50/60Hz, 250 Watt, Switchable
Operating Conditions - dual sd microsd duplication system duplicate secure digital media Operating Conditions - In use : 5C to 35C
(RH: 7% to 80% non condensing)
- Not in use : -20C to 60C
(RH: 7% tot 90% non condensing)
Data Ports - dual sd microsd duplication system duplicate secure digital media Data Ports 1x Read, 31x Write
Production Capacity - dual sd microsd duplication system duplicate secure digital media Production Capacity Maximum 90 GB per port, per hour
Supported Formats - dual sd microsd duplication system duplicate secure digital media Supported Formats FAT16/32, exFAT, NTFS, Linux (ext2/ext3/ext4)
Supported Media - dual sd microsd duplication system duplicate secure digital media Supported Media - SD, SDHC en SDXC cards up to 512 GB. Class 2, 4, 6, 10, UHS class 1, 3
- microSD, microSDHC and microSDXC cards up to 128 GB. Class 2, 4, 6, 10, UHS class 1, 3
- Mini SD/SDHC (with adapters)
Warranty - dual sd microsd duplication system duplicate secure digital media Warranty Standard 1 year carry-in warranty
