CopyBox 39 Secure Digital Duplicator - large capacity secure digital duplicator copy large quantities sd memory cards
Introduction - Features - Specifications

Introduction - large capacity secure digital duplicator copy large quantities sd memory cards

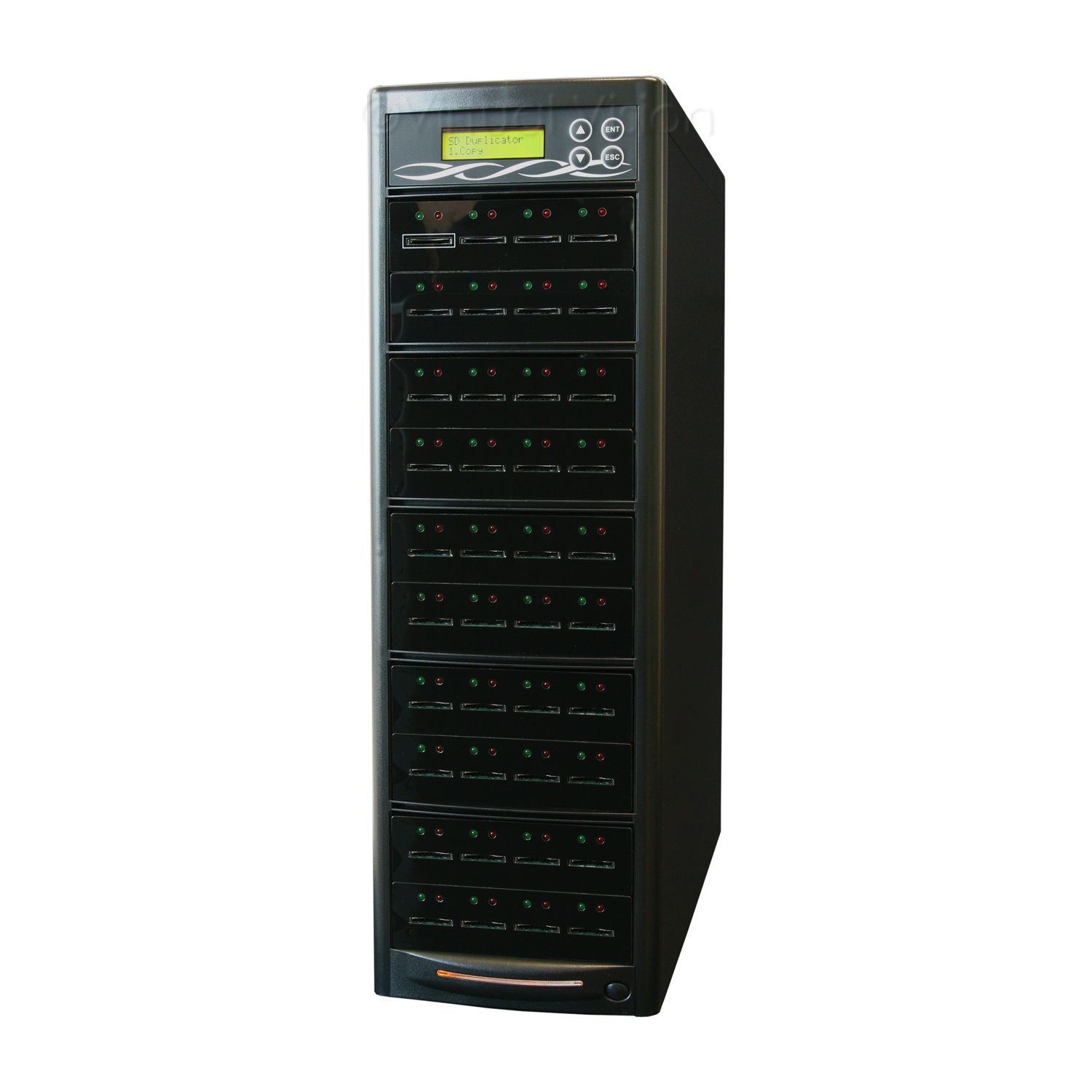

The CopyBox 39 SD duplicator is suitable for users who regularly need to duplicate Secure Digital flash memory cards. The system operates completely stand-alone, without software or PC connection. The CopyBox 39 SD can simultaneously duplicate 39 SD cards (SD and SDHC) from one "master" card. Just insert the master SD memory card into the master data port, insert empty SD cards in the target data ports and press the button to start duplicating!

The CopyBox 39 SD offers a maximum duplication speed of 33 MB/s, per individual port. This allows a data throughput of 118 GB per hour, per port. However, most current SD cards offer lower writing speeds which makes the CopyBox production capacity dependant on the specific Secure Digital media used.

Operating the CopyBox 39 SD is quite simple; all functions are selected using the LCD display and control buttons on the front of the unit. This makes the CopyBox suitable for all users. In addition to the regular Copy and Compare functions, the CopyBox SD duplicator also offers a number of special features;

- Capacity Check (checks the real flash memory capacity on a SD memory card)
- Quick Format (formats SD cards FAT16/32)
- Quick/Full Erase (erases data from SD memory cards)
- DoD Erase (erases media 3x according to the Department of Defense standard)
- Measure Speed (measures the real read and write speeds of SD cards)
- Media Check (checks if the entire SD card can be read and written)

Features - large capacity secure digital duplicator copy large quantities sd memory cards
- Stand-alone operation, easy to follow menu.
- Suitable for all users, no computer knowledge required.
- One master data port and 39 target data ports.
- Maximum copy speed 33 MB/s, per port.
- Compatible with Sd and SDHC flash memory cards.
- Format, Erase, Media Check en Capacity Check functions.
- Also suitable for other memory cards (using memory card adapters).
- Easy operation through a LCD display and control buttons.
- 100% reliable copies due to the integrated control functions.
- Also available as 7, 15, 23, 31 or 47 SD port models.
- Also available as MicroSD, Compact Flash or USB duplicator.

Specifications - large capacity secure digital duplicator copy large quantities sd memory cards
Included - large capacity secure digital duplicator copy large quantities sd memory cards Included - CopyBox 39 SD
- Power Cable
- User Manual
Writing Speeds - large capacity secure digital duplicator copy large quantities sd memory cards Writing Speeds Maximum 33 MB/s per port (depending on the media used)
Connection - large capacity secure digital duplicator copy large quantities sd memory cards Connection Stand-alone
Dimensions - large capacity secure digital duplicator copy large quantities sd memory cards Dimensions (LxWxH) 42x18x56 cm
Weight - large capacity secure digital duplicator copy large quantities sd memory cards Weight 11,5 kg
Power Supply - large capacity secure digital duplicator copy large quantities sd memory cards Power Supply 100-120 VAC or 220-240 VAC, 50/60Hz, 500 Watt, Switchable
Operating Conditions - large capacity secure digital duplicator copy large quantities sd memory cards Operating Conditions - In use : 5C to 35C
(RH: 39% to 80% non condensing)
- Not in use : -20C to 60C
(RH: 39% tot 90% non condensing)
Data Ports - large capacity secure digital duplicator copy large quantities sd memory cards Data Ports 1x Read, 39x Write
Production Capacity - large capacity secure digital duplicator copy large quantities sd memory cards Production Capacity Maximum 118 GB per port, per hour
Supported Formats - large capacity secure digital duplicator copy large quantities sd memory cards Supported Formats FAT16/32/NTFS/Linux (Ext2,Ext3)
Supported Media - large capacity secure digital duplicator copy large quantities sd memory cards Supported Media  - SD en SDHC flash memory cards
- MiniSD, MicroSD, MiniSDHC, MicroSDHC (using SD adapters)
Warranty - large capacity secure digital duplicator copy large quantities sd memory cards Warranty Standard 1 year carry-in warranty
