CopyBox 31 Secure Digital Duplicator - copy sd memory cards duplicate sd sdhc flash memory replicate secure digital
Introduction - Features - Specifications

Introduction - copy sd memory cards duplicate sd sdhc flash memory replicate secure digital

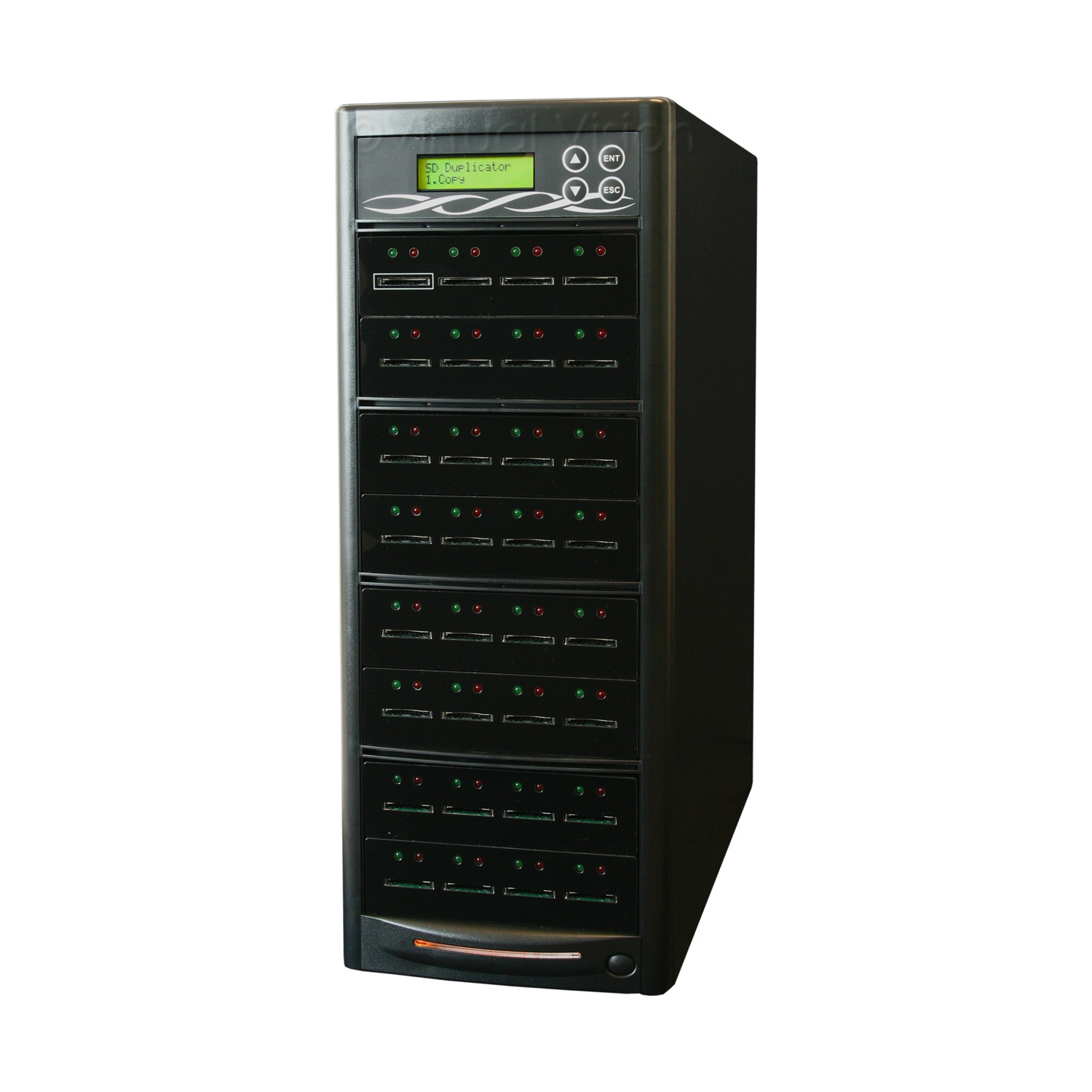

The CopyBox 31 SD duplicator is suitable for users who regularly need to duplicate Secure Digital flash memory cards. The system operates completely stand-alone, without software or PC connection. The CopyBox 31 SD can simultaneously duplicate 31 SD cards (SD and SDHC) from one "master" card. Just insert the master SD memory card into the master data port, insert empty SD cards in the target data ports and press the button to start duplicating!

The CopyBox 31 SD offers a maximum duplication speed of 33 MB/s, per individual port. This allows a data throughput of 118 GB per hour, per port. However, most current SD cards offer lower writing speeds which makes the CopyBox production capacity dependant on the specific Secure Digital media used.

Operating the CopyBox 31 SD is quite simple; all functions are selected using the LCD display and control buttons on the front of the unit. This makes the CopyBox suitable for all users. In addition to the regular Copy and Compare functions, the CopyBox SD duplicator also offers a number of special features;

- Capacity Check (checks the real flash memory capacity on a SD memory card)
- Quick Format (formats SD cards FAT16/32)
- Quick/Full Erase (erases data from SD memory cards)
- DoD Erase (erases media 3x according to the Department of Defense standard)
- Measure Speed (measures the real read and write speeds of SD cards)
- Media Check (checks if the entire SD card can be read and written)

Features - copy sd memory cards duplicate sd sdhc flash memory replicate secure digital
- Stand-alone operation, easy to follow menu.
- Suitable for all users, no computer knowledge required.
- One master data port and 31 target data ports.
- Maximum copy speed 33 MB/s, per port.
- Compatible with Sd and SDHC flash memory cards.
- Format, Erase, Media Check en Capacity Check functions.
- Also suitable for other memory cards (using memory card adapters).
- Easy operation through a LCD display and control buttons.
- 100% reliable copies due to the integrated control functions.
- Also available as 7, 15, 23, 39 or 47 SD port models.
- Also available as MicroSD, Compact Flash or USB duplicator.

Specifications - copy sd memory cards duplicate sd sdhc flash memory replicate secure digital
Included - copy sd memory cards duplicate sd sdhc flash memory replicate secure digital Included - CopyBox 31 SD
- Power Cable
- User Manual
Writing Speeds - copy sd memory cards duplicate sd sdhc flash memory replicate secure digital Writing Speeds Maximum 33 MB/s per port (depending on the media used)
Connection - copy sd memory cards duplicate sd sdhc flash memory replicate secure digital Connection Stand-alone
Dimensions - copy sd memory cards duplicate sd sdhc flash memory replicate secure digital Dimensions (LxWxH) 42x18x47 cm
Weight - copy sd memory cards duplicate sd sdhc flash memory replicate secure digital Weight 9,4 kg
Power Supply - copy sd memory cards duplicate sd sdhc flash memory replicate secure digital Power Supply 100-120 VAC or 220-240 VAC, 50/60Hz, 400 Watt, Switchable
Operating Conditions - copy sd memory cards duplicate sd sdhc flash memory replicate secure digital Operating Conditions - In use : 5C to 35C
(RH: 31% to 80% non condensing)
- Not in use : -20C to 60C
(RH: 31% tot 90% non condensing)
Data Ports - copy sd memory cards duplicate sd sdhc flash memory replicate secure digital Data Ports 1x Read, 31x Write
Production Capacity - copy sd memory cards duplicate sd sdhc flash memory replicate secure digital Production Capacity Maximum 118 GB per port, per hour
Supported Formats - copy sd memory cards duplicate sd sdhc flash memory replicate secure digital Supported Formats FAT16/32/NTFS/Linux (Ext2,Ext3)
Supported Media - copy sd memory cards duplicate sd sdhc flash memory replicate secure digital Supported Media  - SD en SDHC flash memory cards
- MiniSD, MicroSD, MiniSDHC, MicroSDHC (using SD adapters)
Warranty - copy sd memory cards duplicate sd sdhc flash memory replicate secure digital Warranty Standard 1 year carry-in warranty
