CopyBox 15 Secure Digital Duplicator - secure digital copier sd flash memory card duplication stand alone operation
Introduction - Features - Specifications

Introduction - secure digital copier sd flash memory card duplication stand alone operation

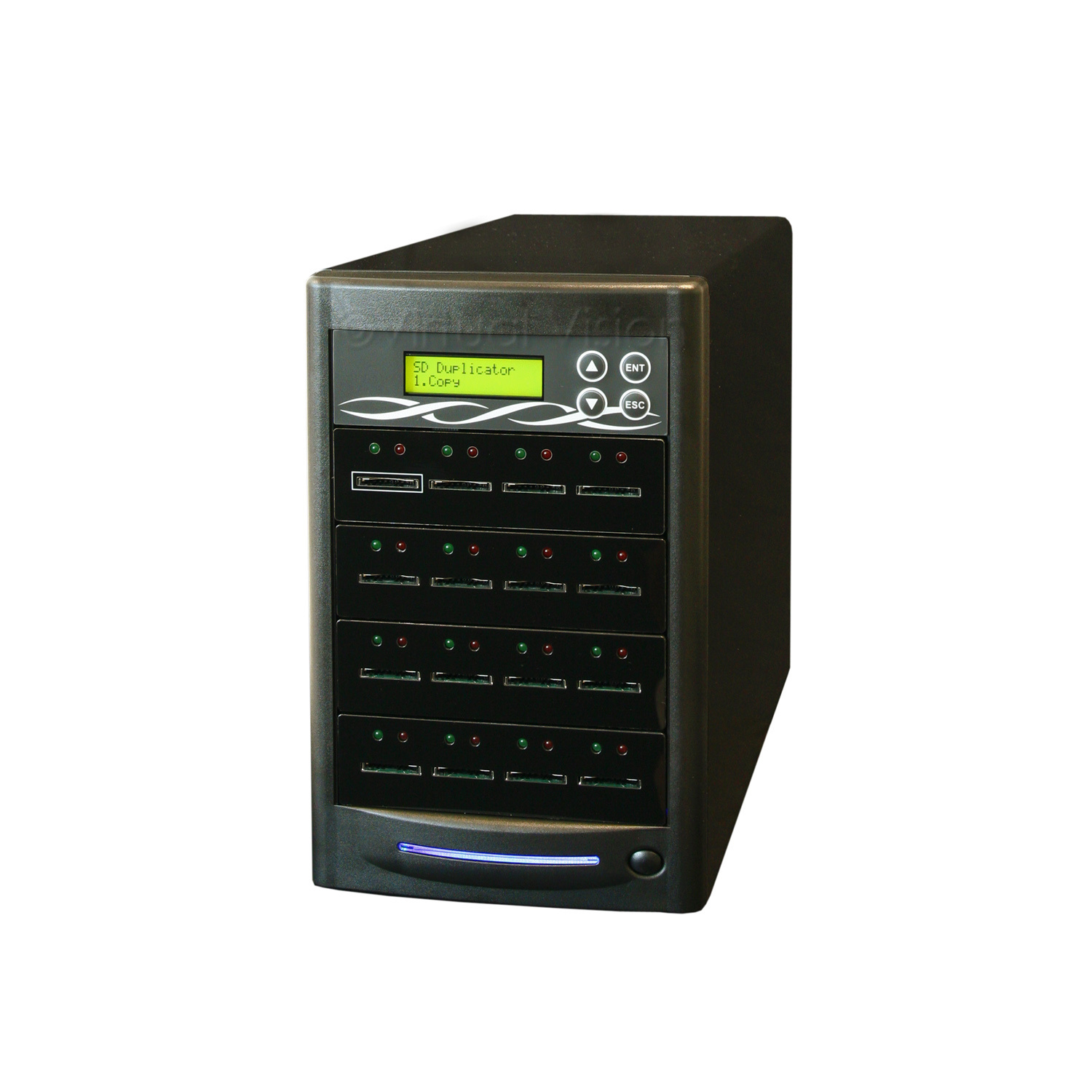

The CopyBox 15 SD duplicator is suitable for users who regularly need to duplicate Secure Digital flash memory cards. The system operates completely stand-alone, without software or PC connection. The CopyBox 15 SD can simultaneously duplicate 15 SD cards (SD and SDHC) from one "master" card. Just insert the master SD memory card into the master data port, insert empty SD cards in the target data ports and press the button to start duplicating!

The CopyBox 15 SD offers a maximum duplication speed of 33 MB/s, per individual port. This allows a data throughput of 118 GB per hour, per port. However, most current SD cards offer lower writing speeds which makes the CopyBox production capacity dependant on the specific Secure Digital media used.

Operating the CopyBox 15 SD is quite simple; all functions are selected using the LCD display and control buttons on the front of the unit. This makes the CopyBox suitable for all users. In addition to the regular Copy and Compare functions, the CopyBox SD duplicator also offers a number of special features;

- Capacity Check (checks the real flash memory capacity on a SD memory card)
- Quick Format (formats SD cards FAT16/32)
- Quick/Full Erase (erases data from SD memory cards)
- DoD Erase (erases media 3x according to the Department of Defense standard)
- Measure Speed (measures the real read and write speeds of SD cards)
- Media Check (checks if the entire SD card can be read and written)

Features - secure digital copier sd flash memory card duplication stand alone operation
- Stand-alone operation, easy to follow menu.
- Suitable for all users, no computer knowledge required.
- One master data port and 15 target data ports.
- Maximum copy speed 33 MB/s, per port.
- Compatible with Sd and SDHC flash memory cards.
- Format, Erase, Media Check en Capacity Check functions.
- Also suitable for other memory cards (using memory card adapters).
- Easy operation through a LCD display and control buttons.
- 100% reliable copies due to the integrated control functions.
- Also available as 7, 23, 31, 39 or 47 SD port models.
- Also available as MicroSD, Compact Flash or USB duplicator.

Specifications - secure digital copier sd flash memory card duplication stand alone operation
Included - secure digital copier sd flash memory card duplication stand alone operation Included - CopyBox 15 SD
- Power Cable
- User Manual
Writing Speeds - secure digital copier sd flash memory card duplication stand alone operation Writing Speeds Maximum 33 MB/s per port (depending on the media used)
Connection - secure digital copier sd flash memory card duplication stand alone operation Connection Stand-alone
Dimensions - secure digital copier sd flash memory card duplication stand alone operation Dimensions (LxWxH) 42x18x28 cm
Weight - secure digital copier sd flash memory card duplication stand alone operation Weight 6,1 kg
Power Supply - secure digital copier sd flash memory card duplication stand alone operation Power Supply 100-120 VAC or 220-240 VAC, 50/60Hz, 250 Watt, Switchable
Operating Conditions - secure digital copier sd flash memory card duplication stand alone operation Operating Conditions - In use : 5C to 35C
(RH: 15% to 80% non condensing)
- Not in use : -20C to 60C
(RH: 15% tot 90% non condensing)
Data Ports - secure digital copier sd flash memory card duplication stand alone operation Data Ports 1x Read, 15x Write
Production Capacity - secure digital copier sd flash memory card duplication stand alone operation Production Capacity Maximum 118 GB per port, per hour
Supported Formats - secure digital copier sd flash memory card duplication stand alone operation Supported Formats FAT16/32/NTFS/Linux (Ext2,Ext3)
Supported Media - secure digital copier sd flash memory card duplication stand alone operation Supported Media  - SD en SDHC flash memory cards
- MiniSD, MicroSD, MiniSDHC, MicroSDHC (using SD adapters)
Warranty - secure digital copier sd flash memory card duplication stand alone operation Warranty Standard 1 year carry-in warranty
