Virtual Vision

CopyBox 47 CompactFlash Duplicator - large capacity compactflash multi duplicator system copy cf flash cards
Introduction - Features - Specifications

A Virtual Vision Product

CopyBox 47 CF Duplicator - large capacity compactflash multi duplicator system copy cf flash cards


Order Now - large capacity compactflash multi duplicator system copy cf flash cards

Prices:
Price - large capacity compactflash multi duplicator system copy cf flash cardsCopyBox 47 CompactFlash
- Prices in Euro's, excl. 21% VAT.
Information:
Delivery Time - large capacity compactflash multi duplicator system copy cf flash cardsDelivery Time
Warranty - large capacity compactflash multi duplicator system copy cf flash cardsWarranty 1 year
Payment - large capacity compactflash multi duplicator system copy cf flash cardsPayment
Shipment - large capacity compactflash multi duplicator system copy cf flash cardsShipment
Support - large capacity compactflash multi duplicator system copy cf flash cardsSupport
Price Guarantee - large capacity compactflash multi duplicator system copy cf flash cardsPrice Guarantee
Downloads:
Download PDF BrochureBrochure CopyBox 47 CF
Product Comparison - large capacity compactflash multi duplicator system copy cf flash cardsComparison Data Duplicators
User Manual - large capacity compactflash multi duplicator system copy cf flash cardsUser Manual CopyBox 47 CF
Multimedia:
High resolution photo - large capacity compactflash multi duplicator system copy cf flash cardsHigh resolution photo
Also see:
Also See USB - large capacity compactflash multi duplicator system copy cf flash cardsUSB Stick Duplicators
Also See SD - large capacity compactflash multi duplicator system copy cf flash cardsSD/microSD Duplicators
Also See HDD - large capacity compactflash multi duplicator system copy cf flash cardsHard Drive Duplicators
Also See DVD - large capacity compactflash multi duplicator system copy cf flash cardsDVD Duplicators
Also See BD - large capacity compactflash multi duplicator system copy cf flash cardsBlu-Ray Duplicators

Introduction - large capacity compactflash multi duplicator system copy cf flash cards

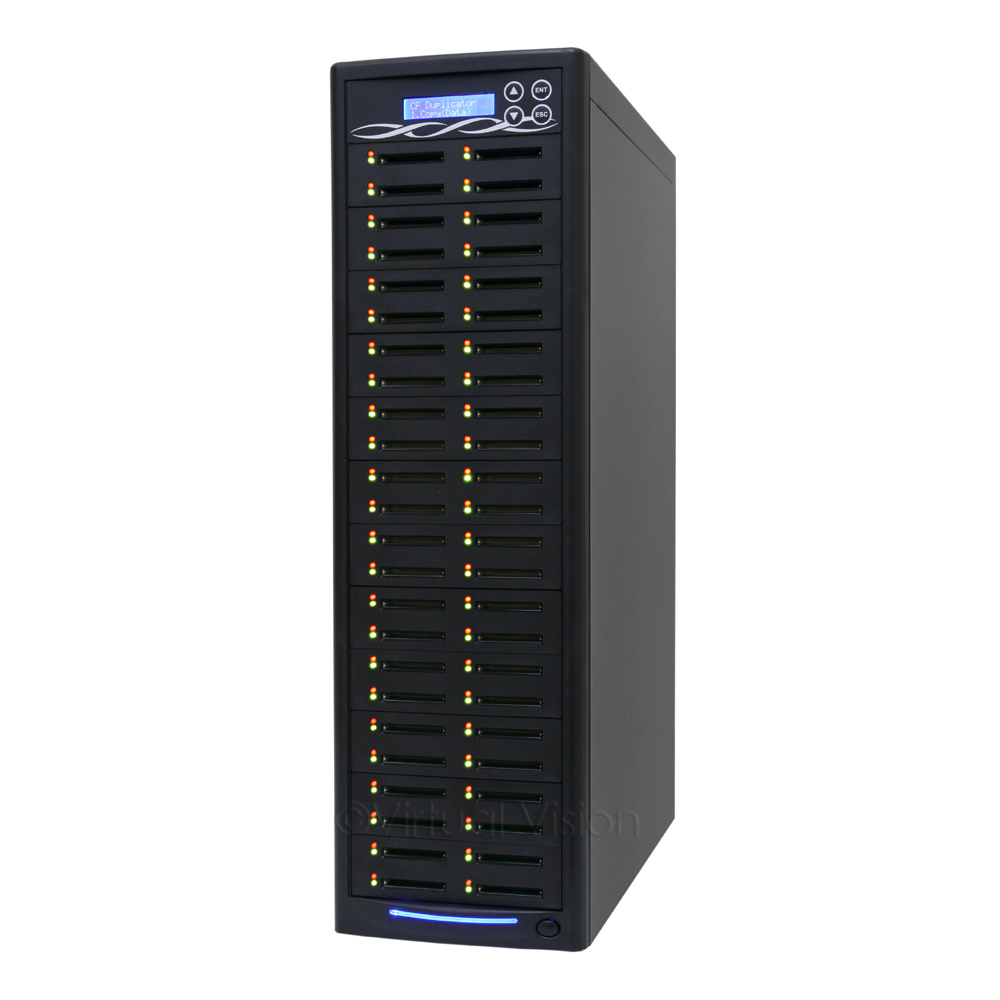

The CopyBox 47 CompactFlash duplicator is suitable for users who regularly need to duplicate CF memory cards. The system operates completely stand-alone, without software or PC connection. The CopyBox 47 CF can simultaneously duplicate 47 CompactFlash cards from one "master" card. Just insert the master CF memory card into the master data port, insert empty CF cards in the target data ports and press the button to start duplicating!

The CopyBox 47 CF offers a maximum duplication speed of 75 MB/s, per individual port. This allows a data throughput of 270 GB per hour, per port. However, most current CF cards offer lower writing speeds which makes the CopyBox production capacity dependant on the specific CompactFlash media used.

Operating the CopyBox 47 CF is quite simple; all functions are selected using the LCD display and control buttons on the front of the unit. This makes the CopyBox suitable for all users. In addition to the regular 'Copy" and "Compare" functions, the CopyBox CF duplicator also offers a number of special features;

- Capacity Check (checks the real flash memory capacity on a CF memory card)
- Quick Format (formats CF cards FAT16/32)
- Quick/Full Erase (erases data from CF memory cards)
- DoD Erase (erases media 3x according to the Department of Defense 5220 standard)
- Measure Speed (measures the real read and write speeds of CF cards)
- Media Check (checks if the entire CF card can be read and written)

Features - large capacity compactflash multi duplicator system copy cf flash cards
- Stand-alone operation, easy to follow menu.
- Suitable for all users, no computer knowledge required.
- One master data port and 47 target data ports.
- Maximum copy speed 75 MB/s, per port.
- Compatible with all CompactFlash memory cards upto 64 GB.
- Format, Erase, Media Check en Capacity Check functions.
- Easy operation through a LCD display and control buttons.
- 100% reliable copies due to the integrated control functions.
- Also available as 7, 15, 23, 31 and 39 port models.

Specifications - large capacity compactflash multi duplicator system copy cf flash cards
Included - large capacity compactflash multi duplicator system copy cf flash cards Included - CopyBox 47 CompactFlash
- Power Cable
- User Manual
Writing Speeds - large capacity compactflash multi duplicator system copy cf flash cards Writing Speeds Maximum 75 MB/s per port (depending on the media used)
Connection - large capacity compactflash multi duplicator system copy cf flash cards Connection Stand-alone
Dimensions - large capacity compactflash multi duplicator system copy cf flash cards Dimensions (LxWxH) 42x18x60,5 cm
Weight - large capacity compactflash multi duplicator system copy cf flash cards Weight 13,0 kg
Power Supply - large capacity compactflash multi duplicator system copy cf flash cards Power Supply 100-120 VAC or 220-240 VAC, 50/60Hz, 500 Watt, Switchable
Operating Conditions - large capacity compactflash multi duplicator system copy cf flash cards Operating Conditions - In use : 5C to 35C
(RH: 7% to 80% non condensing)
- Not in use : -20C to 60C
(RH: 7% tot 90% non condensing)
Data Ports - large capacity compactflash multi duplicator system copy cf flash cards Data Ports 1x Read, 47x Write
Production Capacity - large capacity compactflash multi duplicator system copy cf flash cards Production Capacity Maximum 270 GB per port, per hour
Supported Formats - large capacity compactflash multi duplicator system copy cf flash cards Supported Formats FAT16/32, exFAT, NTFS, Linux (ext2/ext3/ext4)
Supported Media - large capacity compactflash multi duplicator system copy cf flash cards Supported Media CompactFlash memory cards up to 512 GB
Warranty - large capacity compactflash multi duplicator system copy cf flash cards Warranty Standard 1 year carry-in warranty
