CopyBox 23 Compact Flash Duplicator - compact flash memorycard duplicator replicate cf flash cards stand alone operation
Introduction - Features - Specifications

A Virtual Vision Product

CopyBox 23 CF Duplicator - compact flash memorycard duplicator replicate cf flash cards stand alone operation

Prices:
Price - compact flash memorycard duplicator replicate cf flash cards stand alone operationCopyBox 23 CF
- Prices in Euro's, excl. 21% VAT.
Information:
Delivery Time - compact flash memorycard duplicator replicate cf flash cards stand alone operationDelivery Time
Warranty - compact flash memorycard duplicator replicate cf flash cards stand alone operationWarranty 1 year
Payment - compact flash memorycard duplicator replicate cf flash cards stand alone operationPayment
Shipment - compact flash memorycard duplicator replicate cf flash cards stand alone operationShipment
Support - compact flash memorycard duplicator replicate cf flash cards stand alone operationSupport
Price Guarantee - compact flash memorycard duplicator replicate cf flash cards stand alone operationPrice Guarantee
Downloads:
Product Comparison - compact flash memorycard duplicator replicate cf flash cards stand alone operationComparison Data Duplicators
User Manual - compact flash memorycard duplicator replicate cf flash cards stand alone operationUser Manual CopyBox 23 CF
Download PDF BrochureBrochure CopyBox 23 CF
Multimedia:
High resolution photo - compact flash memorycard duplicator replicate cf flash cards stand alone operationHigh resolution photo
Also see:
Also See - compact flash memorycard duplicator replicate cf flash cards stand alone operationUSB Stick Duplicators
Also See - compact flash memorycard duplicator replicate cf flash cards stand alone operationMicroSD Duplicators
Also See - compact flash memorycard duplicator replicate cf flash cards stand alone operationSD Duplicators

Introduction - compact flash memorycard duplicator replicate cf flash cards stand alone operation

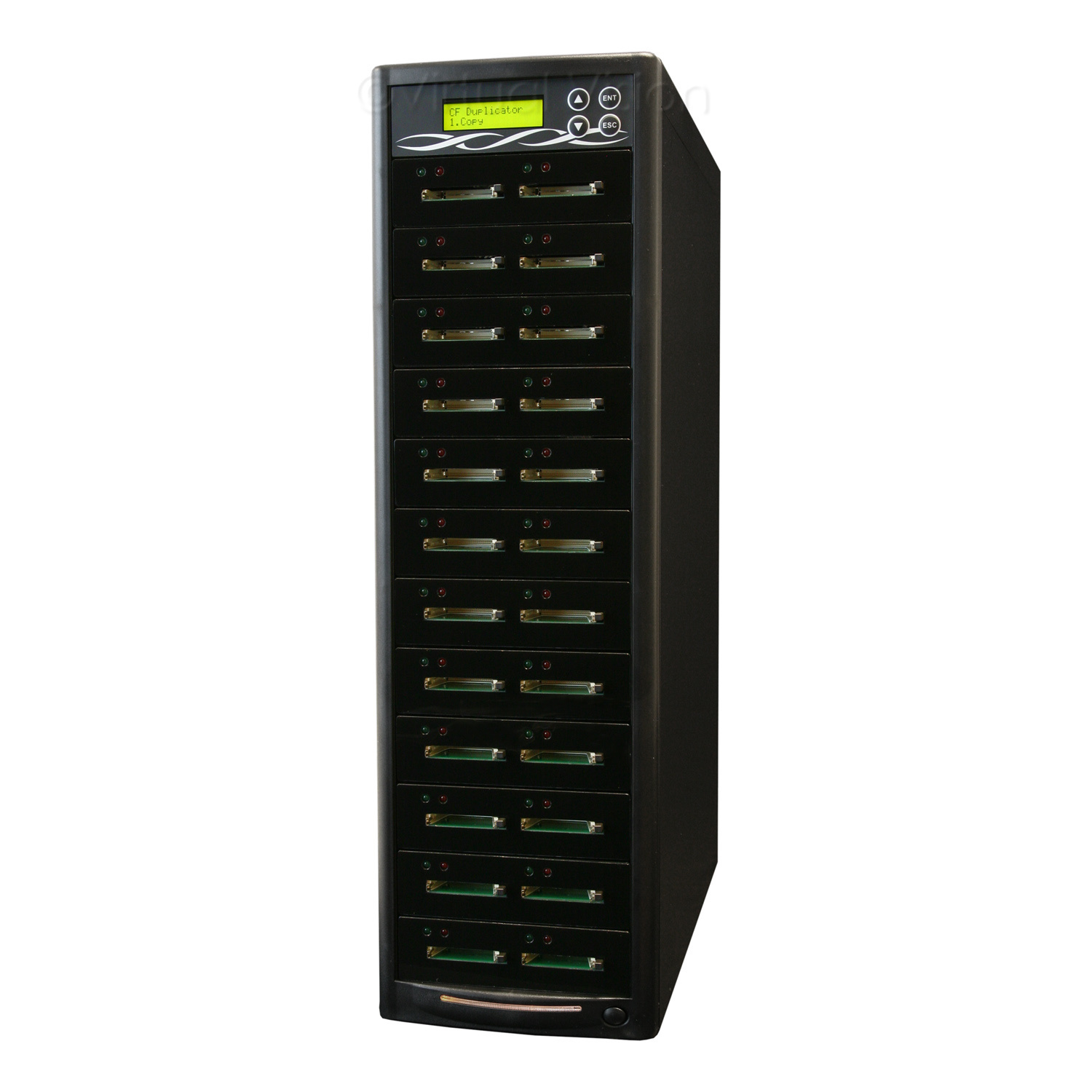

The CopyBox 23 CF duplicator is suitable for users who regularly need to duplicate CompactFlash memory cards. The system operates completely stand-alone, without software or PC connection. The CopyBox 23 CF can simultaneously duplicate 23 CompactFlash cards from one "master" card. Just insert the master CF memory card into the master data port, insert empty CF cards in the target data ports and press the button to start duplicating!

The CopyBox 23 CF offers a maximum duplication speed of 33 MB/s, per individual port. This allows a data throughput of 118 GB per hour, per port. However, most current CF cards offer lower writing speeds which makes the CopyBox production capacity dependant on the specific Compact Flash media used.

Operating the CopyBox 23 CF is quite simple; all functions are selected using the LCD display and control buttons on the front of the unit. This makes the CopyBox suitable for all users. In addition to the regular Copy and Compare functions, the CopyBox CF duplicator also offers a number of special features;

- Capacity Check (checks the real flash memory capacity on a CF memory card)
- Quick Format (formats CF cards FAT16/32)
- Quick/Full Erase (erases data from CF memory cards)
- DoD Erase (erases media 3x according to the Department of Defense standard)
- Measure Speed (measures the real read and write speeds of CF cards)
- Media Check (checks if the entire CF card can be read and written)

Features - compact flash memorycard duplicator replicate cf flash cards stand alone operation
- Stand-alone operation, easy to follow menu.
- Suitable for all users, no computer knowledge required.
- One master data port and 23 target data ports.
- Maximum copy speed 33 MB/s, per port.
- Compatible with all CompactFlash memory cards.
- Format, Erase, Media Check en Capacity Check functions.
- Easy operation through a LCD display and control buttons.
- 100% reliable copies due to the integrated control functions.
- Also available as 7 or 15 CF port models.
- Also available as MicroSD, Secure Digital or USB duplicator.

Specifications - compact flash memorycard duplicator replicate cf flash cards stand alone operation
Included - compact flash memorycard duplicator replicate cf flash cards stand alone operation Included - CopyBox 23 CF
- Power Cable
- User Manual
Writing Speeds - compact flash memorycard duplicator replicate cf flash cards stand alone operation Writing Speeds Maximum 33 MB/s per port (depending on the media used)
Connection - compact flash memorycard duplicator replicate cf flash cards stand alone operation Connection Stand-alone
Dimensions - compact flash memorycard duplicator replicate cf flash cards stand alone operation Dimensions (LxWxH) 42x18x60 cm
Weight - compact flash memorycard duplicator replicate cf flash cards stand alone operation Weight 12,3 kg
Power Supply - compact flash memorycard duplicator replicate cf flash cards stand alone operation Power Supply 100-120 VAC or 220-240 VAC, 50/60Hz, 500 Watt, Switchable
Operating Conditions - compact flash memorycard duplicator replicate cf flash cards stand alone operation Operating Conditions - In use : 5C to 35C
(RH: 23% to 80% non condensing)
- Not in use : -20C to 60C
(RH: 23% tot 90% non condensing)
Data Ports - compact flash memorycard duplicator replicate cf flash cards stand alone operation Data Ports 1x Read, 23x Write
Production Capacity - compact flash memorycard duplicator replicate cf flash cards stand alone operation Production Capacity Maximum 118 GB per port, per hour
Supported Formats - compact flash memorycard duplicator replicate cf flash cards stand alone operation Supported Formats FAT16/32/NTFS/Linux (Ext2,Ext3)
Supported Media - compact flash memorycard duplicator replicate cf flash cards stand alone operation Supported Media  - CompactFlash memory cards
Warranty - compact flash memorycard duplicator replicate cf flash cards stand alone operation Warranty Standard 1 year carry-in warranty
